Model EL150 Full View Frameless

Elegant Garage Door

Frameless Full View

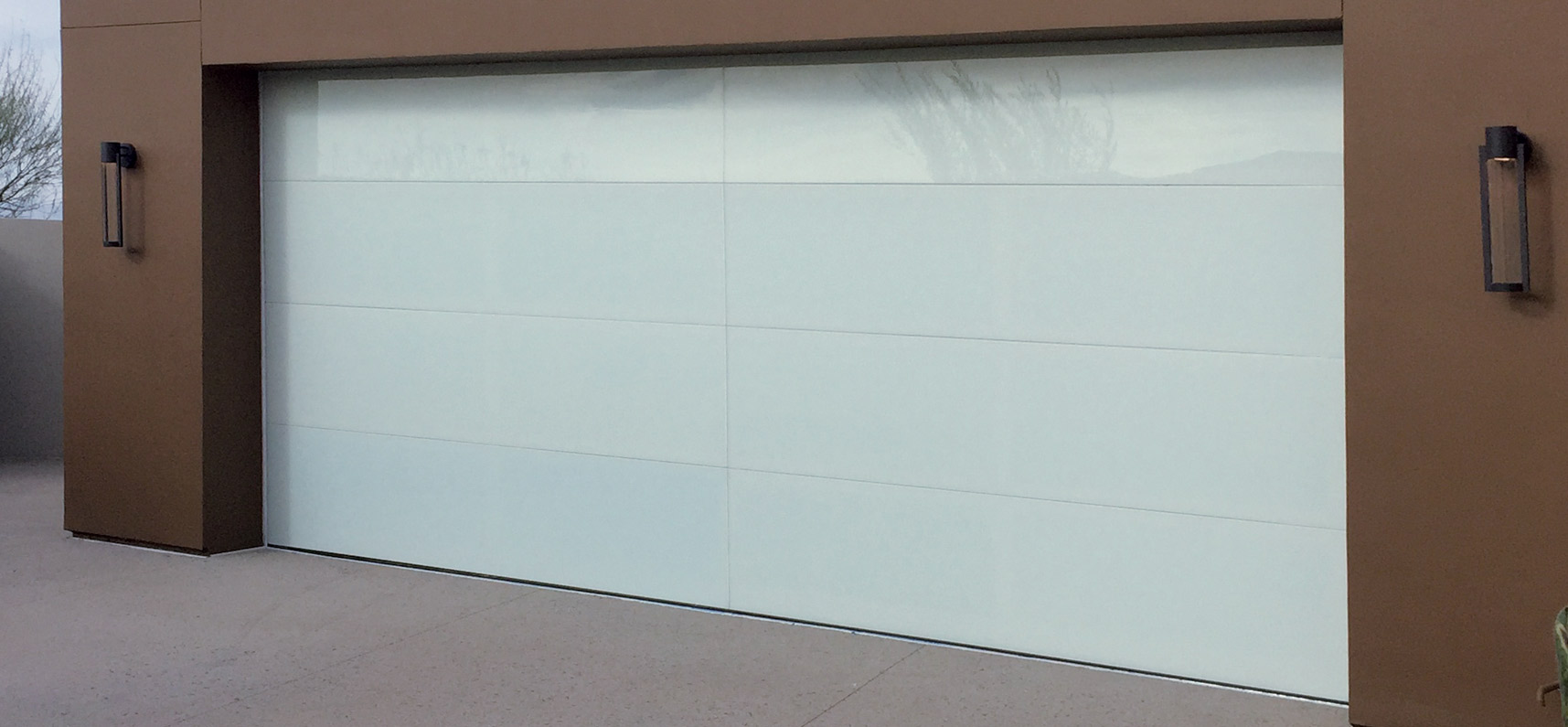

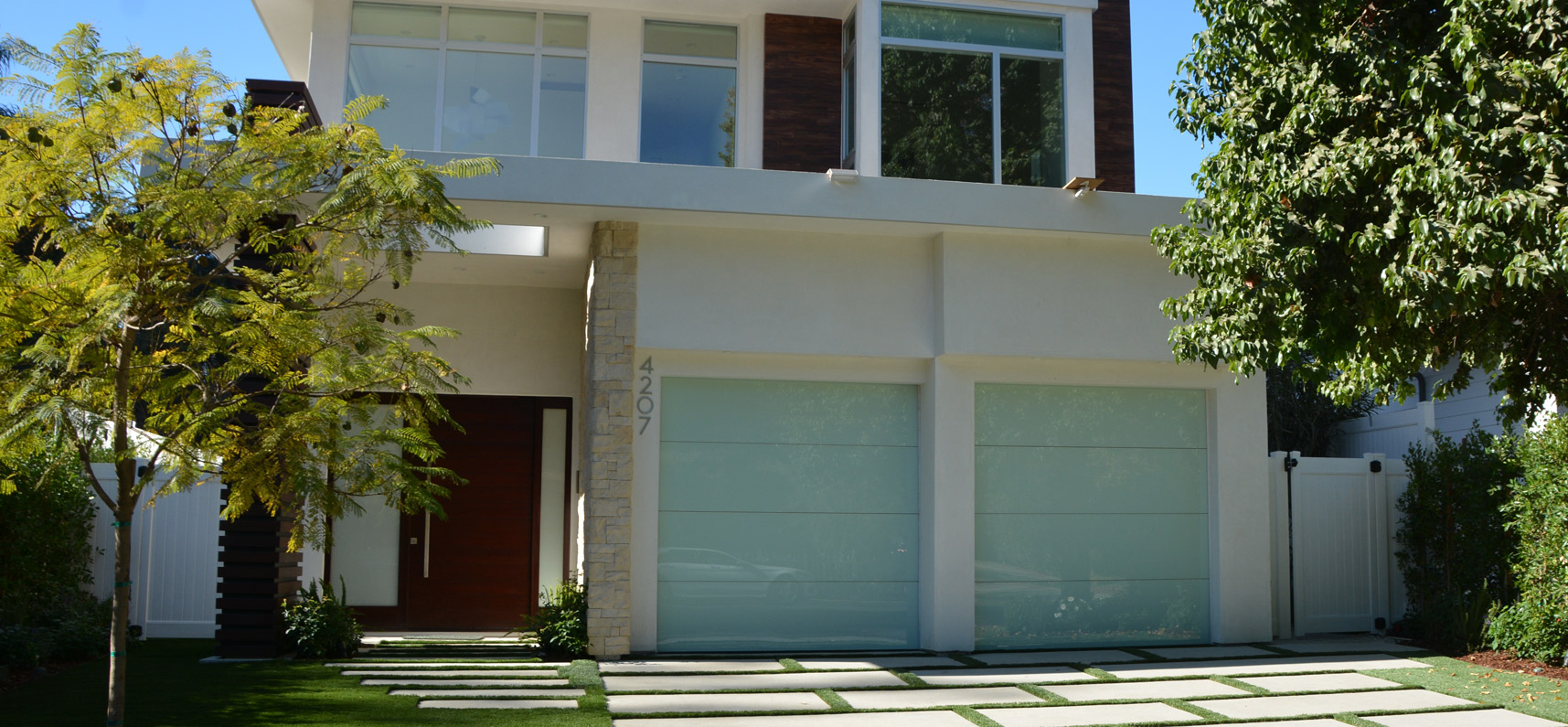

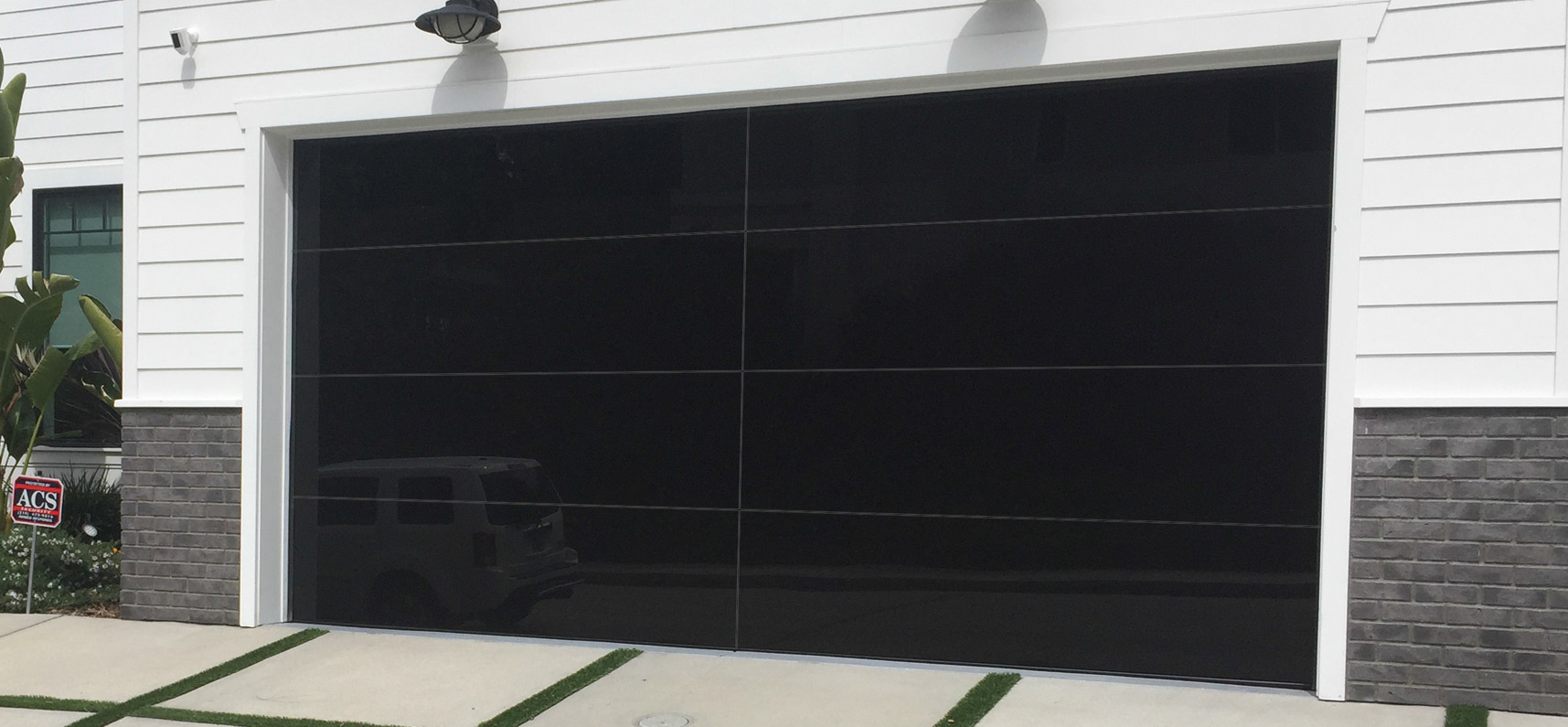

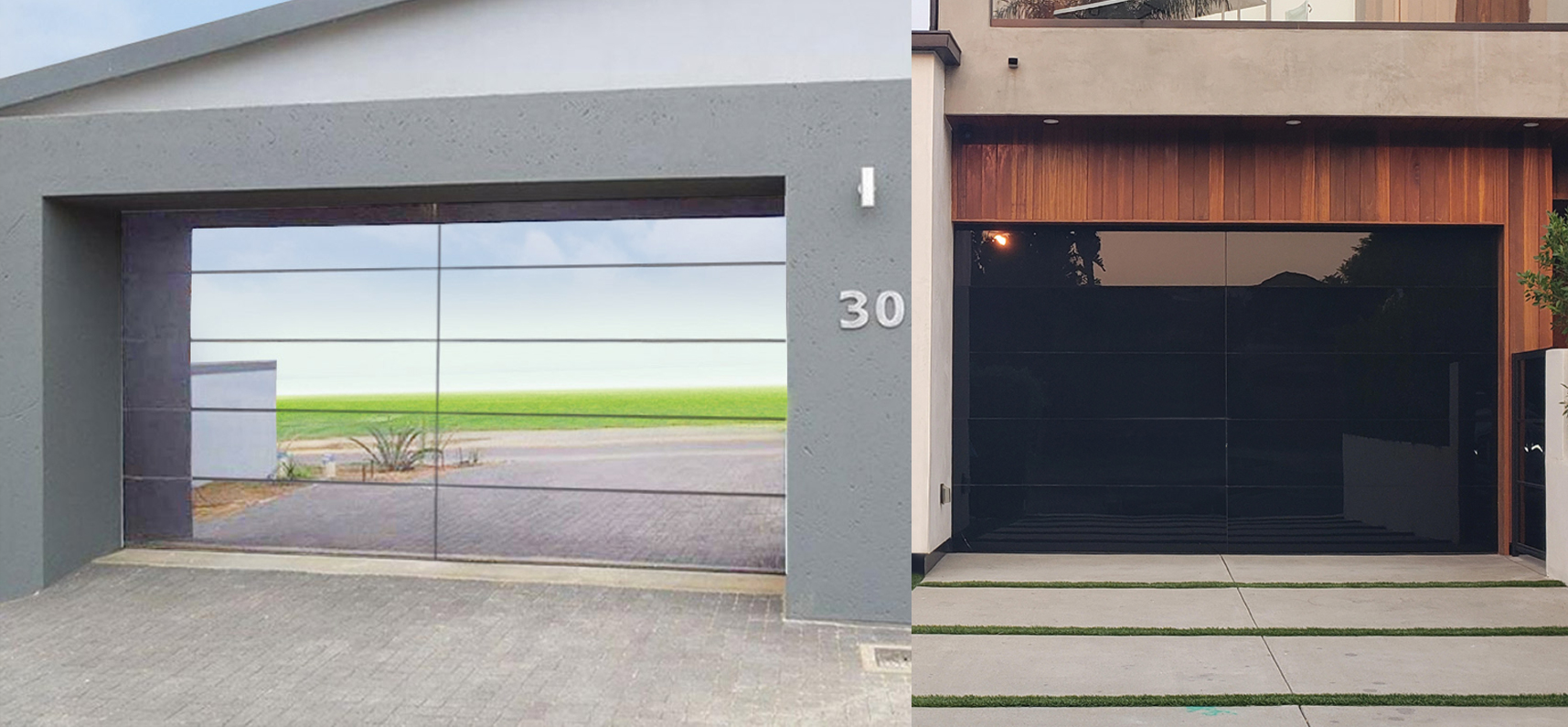

The EL 150 Aluminum garage door is a frameless looking glass and aluminum door that is revolutionizing the Los Angeles custom garage door industry. Elegant Custom Garage Door & Gate were one of the first companies to design, and install these high end contemporary-looking custom garage doors.

Sporting a modern, sleek, and stylish look the EL 150 Aluminum consists of usually mirrored or opaque glass panels that are seamlessly attached to a fully aluminum frame. This gives the whole door a thoroughly contemporary and modern look, that is hard to beat and will add instant curb appeal once fully installed.

With sales of the EL 150 Aluminum custom garage door soaring, we are now Southern California’s market leader in supplying these ultra-modern garage doors to residences all over Los Angeles.

QTY

Design Options

One Car Design

One Car Design

Two Car Design

Two Car Design

Colors - Opaque

Colors - Translucent

Frame Finishes - Powdered Coat and Anodized

FULL VIEW FRAMELESS SPECIFICATIONS

Specifications

Material: 1-3/4" thick extruded 6063-T6 non corrosive commercial-grade

Sections: Height of section determined by height of door

Top rail width - 4-5/8"

Bottom rail width - 4-5/8"

Combined intermediate rail widths - 4-1/4"

Center stile width - 2-7/8" End stile width- 4-5/8"

Section Joints: Standard tongue & groove

Assembly: Stiles are through bolted to the rails added rigidity and strength

Maximum door width: 18ft

Maximum door height: 14ft.

Glass

Glass Size Capabilities: Three options of glass thickness available 1/8" / 1/4" / 1/2"

Standard Options: Clear Tempered / Frosted Tempered / White Laminate

Glazing is completed using a butyl tape that adheres the glass to the frame and provides a high quality seal.

Aluminum retainers are snapped in place with a 1/4" EPDM round foam strip between the glass and aluminum retainer acting as another seal and impact dampener.


Track

All 2" tracks are 12" or 15" Radius - 14 gauge horizontals with 17 gauge verticals

All tracks are mounted with reverse continuous jamb angle

Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal

All 3" tracks are 15" Radius - 12 gauge and use is determined by weight of door

Options: Low Headroom (0" or 3.5" ), High Lift, Vertical Lift, Follow the Pitch

Hardware

All components are galvanized steel and consist of 14 gauge hinges, 12 gauge top & bottom fixtures

2" nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-stem for hinges

Inside lock included

*Please Note: 11 gauge components and 3" steel 10 ball bearing rollers will be used when specified.
