Rail and Stile Wood Door

Elegant Garage Door

Wood Garage Door

Our rail & stile wood doors are built for the traditionalist. Constructed using the mortise and tenon style system, the rail & stile door comes in a select few standard options like long or short panel, raised or recessed panel, and each option is available in paint grade or stain grade. Available in premium woods such as Hemlock, Western Red Cedar, and Mahogany. The rail & stile door is sure to add a warm, deep richness to the exterior of your home.

QTY

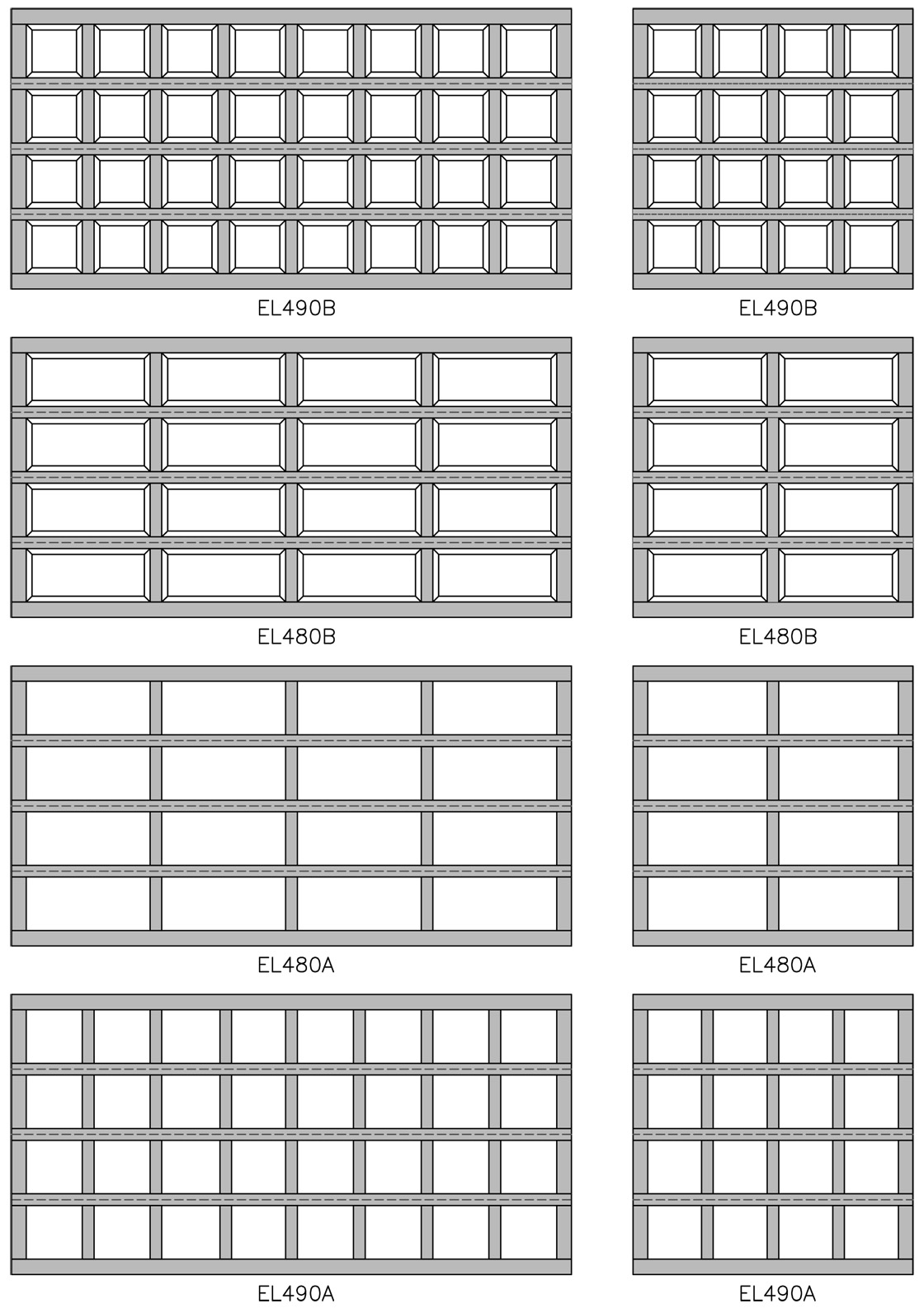

CHOOSE YOUR MODEL

Size

18 ft R&SWD18
9ft R&SWD9

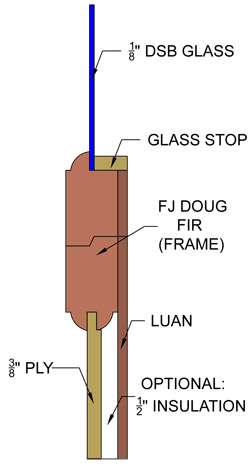

RAIL & STILE SPECIFICATIONS

Paint Grade (primed white)

Back (layer 1): 1 4" Luan

Frame (layer 2): 1- 3 8" FJ(FInger Joint) Hem Fir Deep Plowed

Insulation: 1 2" Polystyrene is optional and considered an upgrade

Panels (option 1): 3 8" Baltic Birch recessed panels

Panels (option 2): 1 2" Extira raised panels

Stiles: Single center stiles

Stain Grade (unfinished)

Back (layer 1): 1 4" Luan

Frame (layer 2): 1- 3 8" Clear Vertical Grain Hemlock Deep Plowed

Insulation: 1 2" Polystyrene is optional and considered an upgrade

Panels (option 1): 3 8" Aquatek Marine Ply recessed panels

Panels (option 2): 5 8" Edge-Glued Hemlock raised panels

Stiles: Single center stiles
